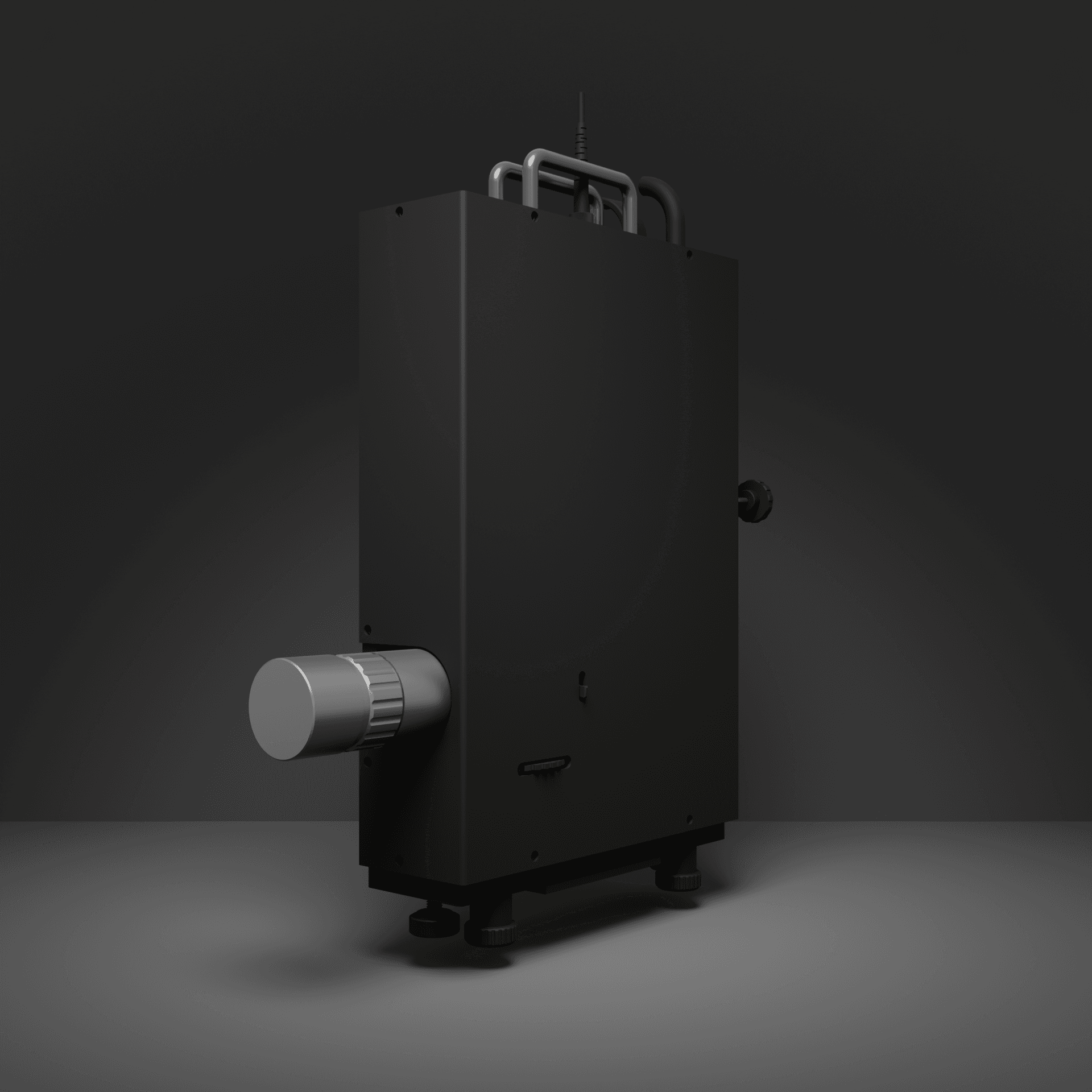

DualSnap™
Dual-Mode Snapshot On-Machine Metrology System

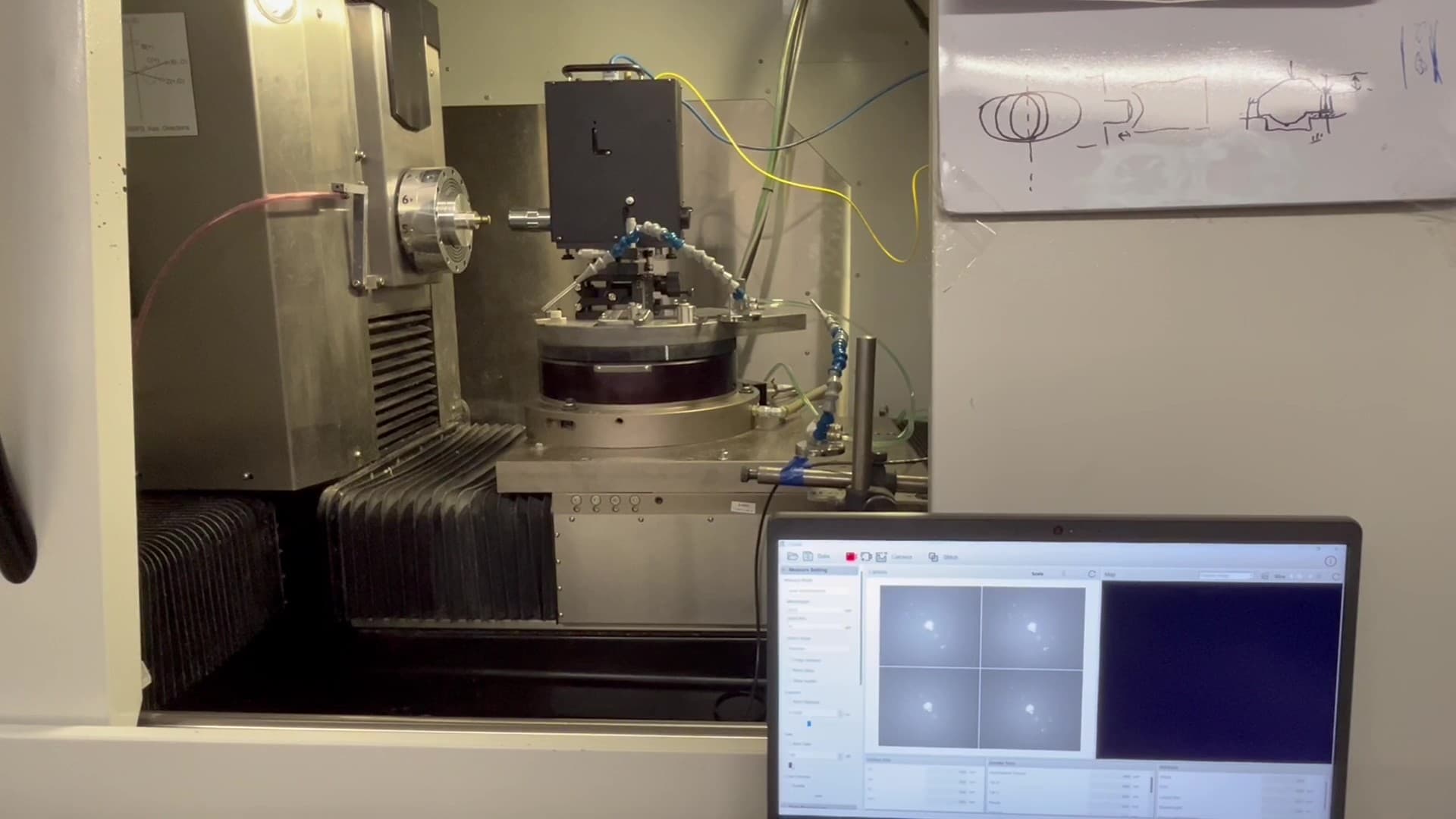

DuSnap™ is a compact, dual-mode on-machine metrology system designed for real-time surface measurement during production. By combining laser interferometry and LED interference microscopy, DuSnap™ enables in-situ measurement of surface form and roughness without part removal—improving accuracy, throughput, and process stability on the production floor.
- Key Features
- Dual-mode measurement of surface form and roughness
- Fast, assisted alignment enabled by dual-mode operation
- Snapshot measurement for production floor environments

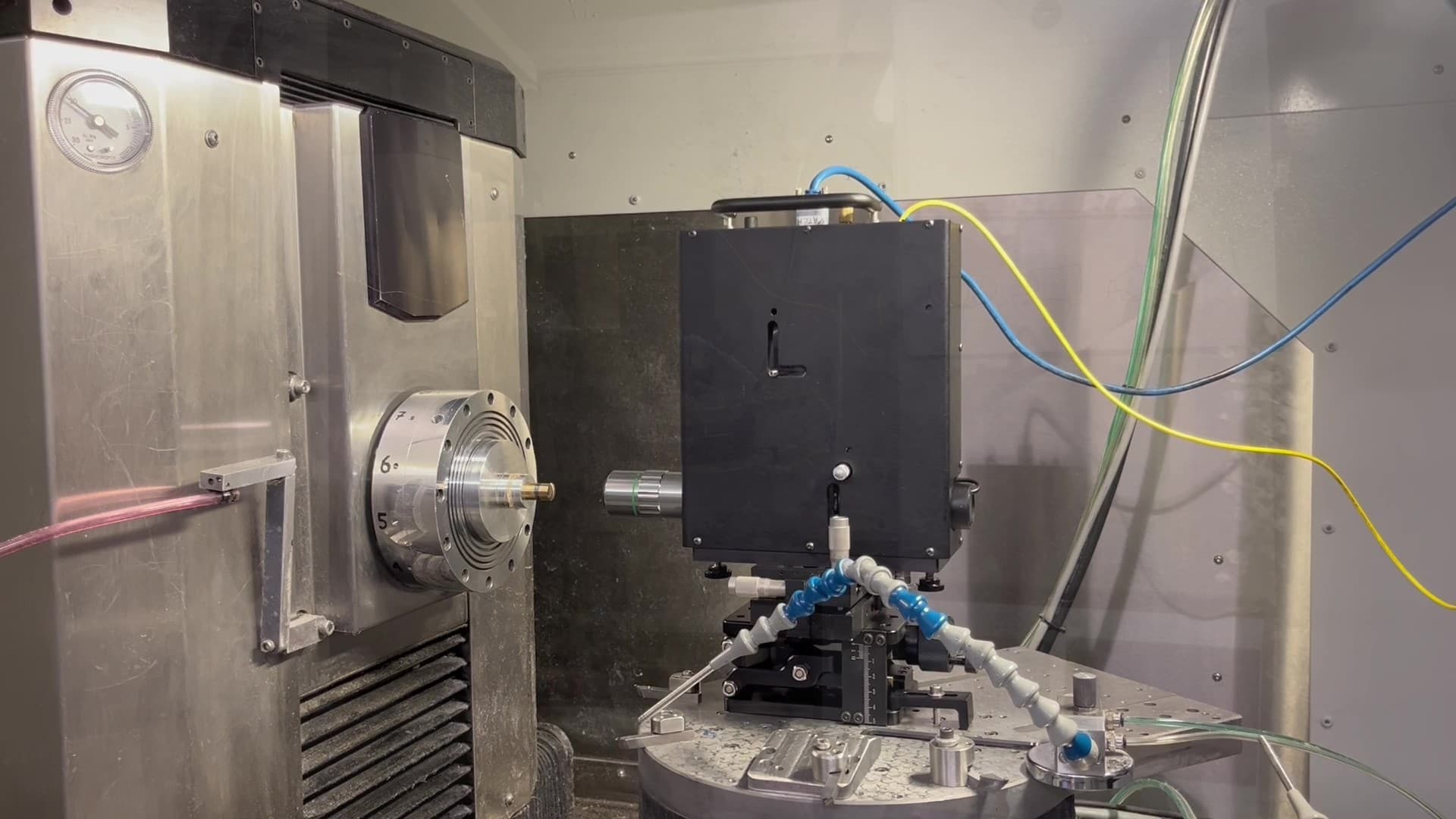

- Snap-on installation on SPDT machines

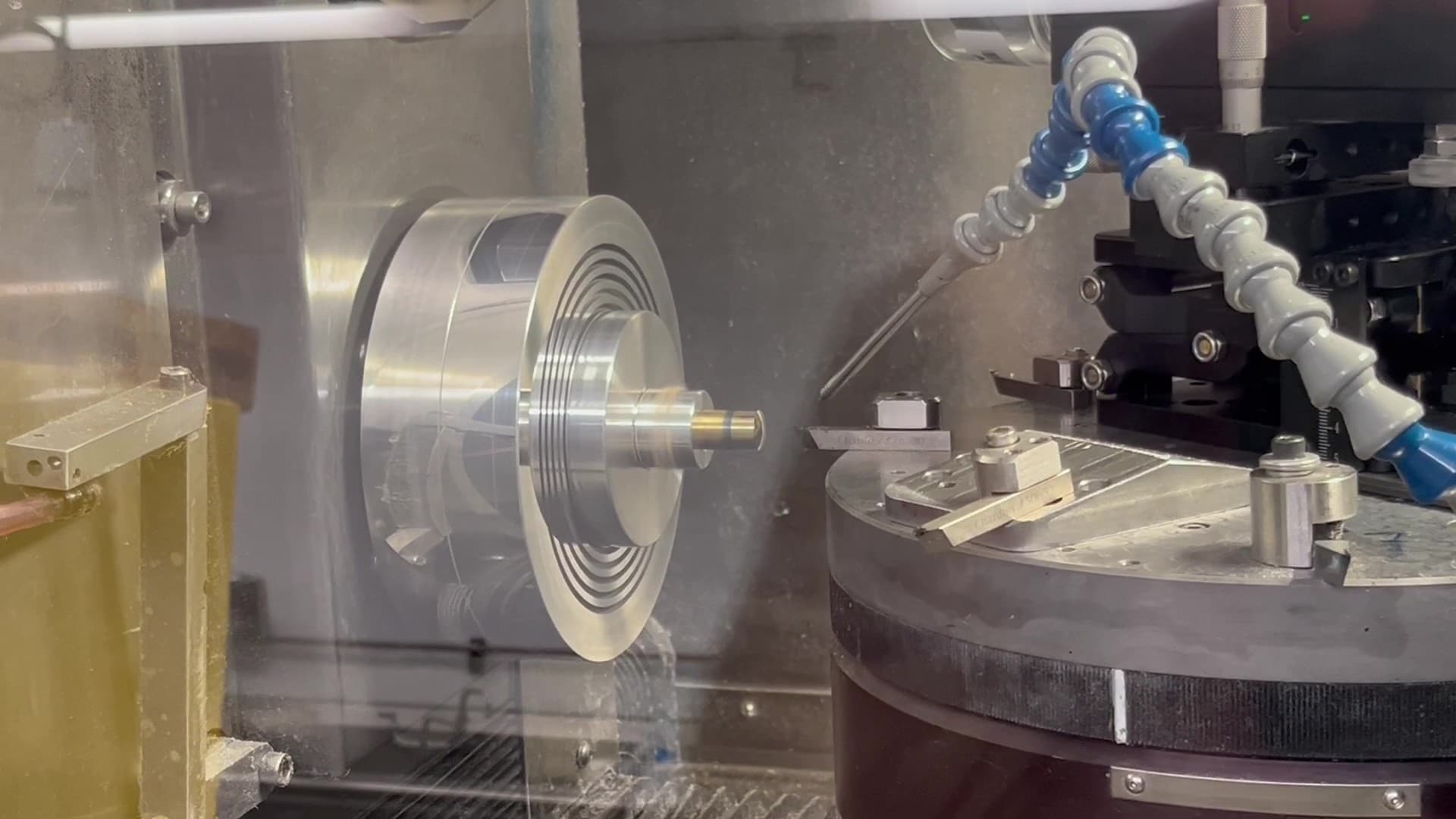

- Rapid on-machine tool alignment
DualSnap™
SYSTEM SPECIFICATIONS
- Wavelengths
- 632.8 nm (laser), 530 nm (LED)
- Aperture Diameter
- 10 mm (expandable)
- Objective
- 20x/0.34NA
- Lateral Resolution
- 0.8 µm (0.34 NA)
- Field of View
- 0.42 x 0.35 mm
- Working Distance
- ~29.5 mm
- Acquisition Rate
- 75fps
- Measurement Array
- 2448 x 2048 pixels
- Material
- Opaque, transparent, specular, rough
- Dimensions
- 217 × 181 × 50 mm
- Weight
- 3.5 kg
Video

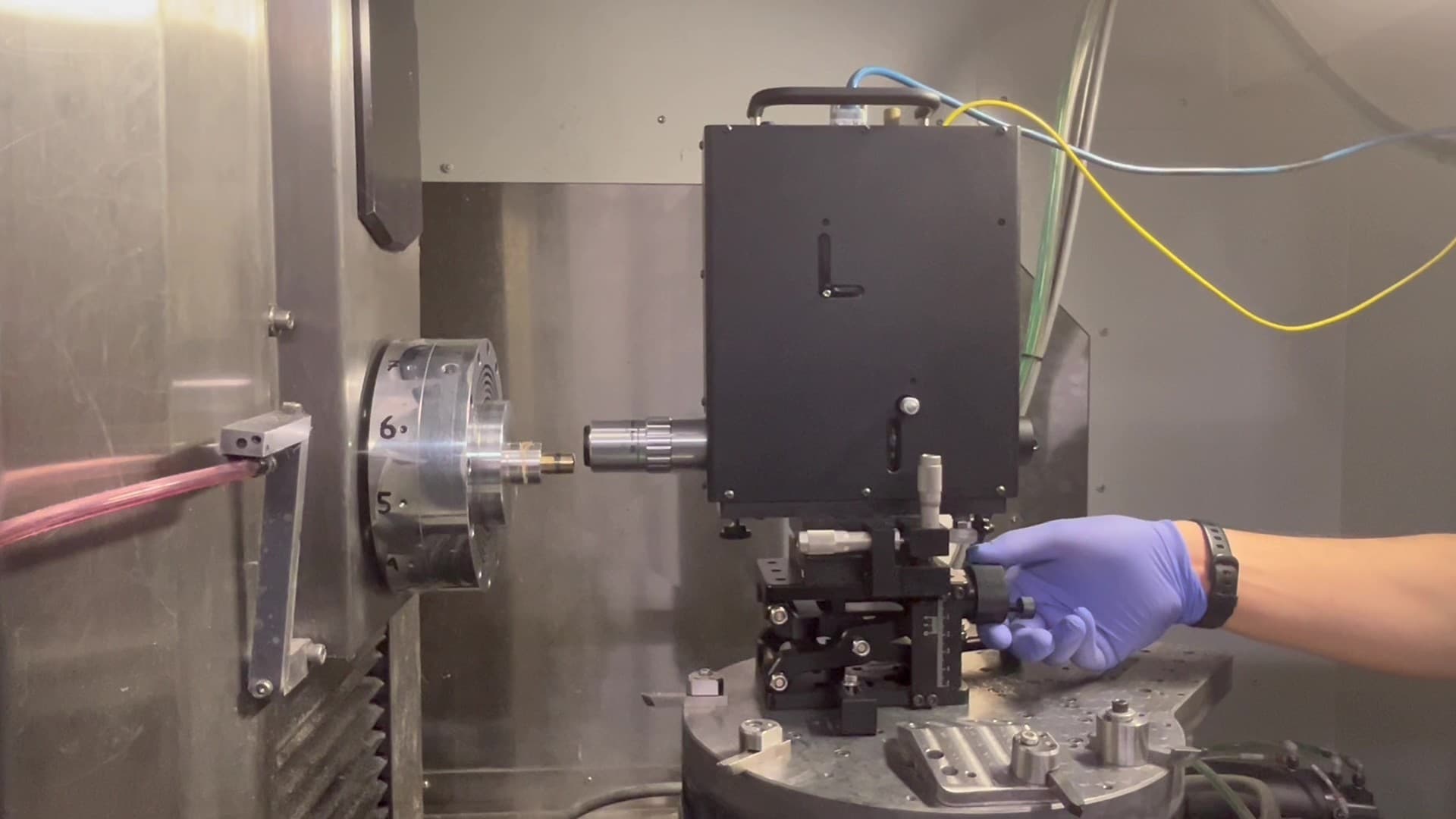

Installation Tutorial
DualSight™ Software
Comprehensive analysis of surface form, roughness, geometry, and tool characteristics directly on SPDT machines
DualSight™

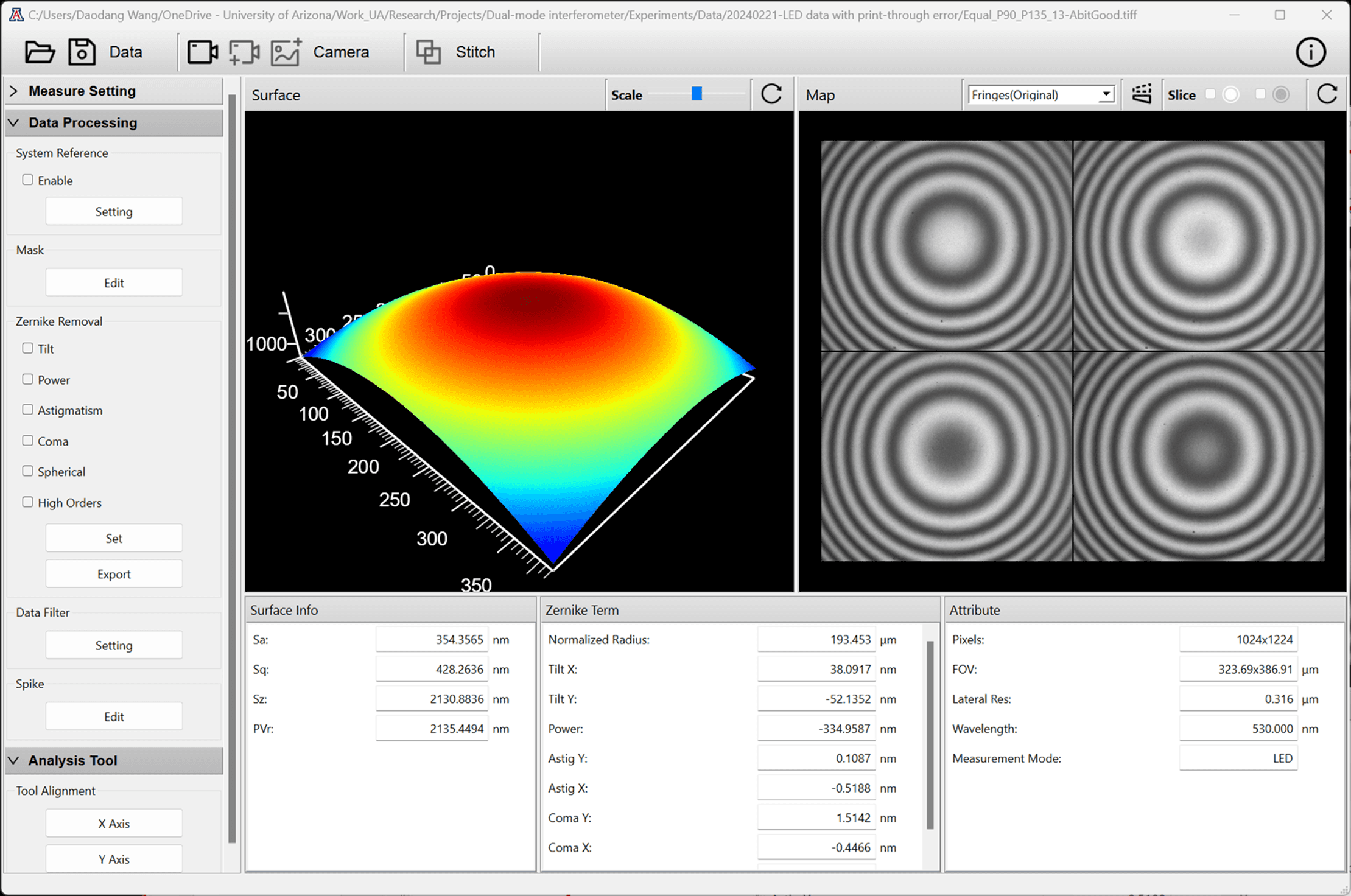

Software Interface
- Capture & Save images
- Import/Export various files (.tiff, .png, .bmp, .jpg, .xyz, .dat/datx)
- Data stitching
- System calibration
DualSight™

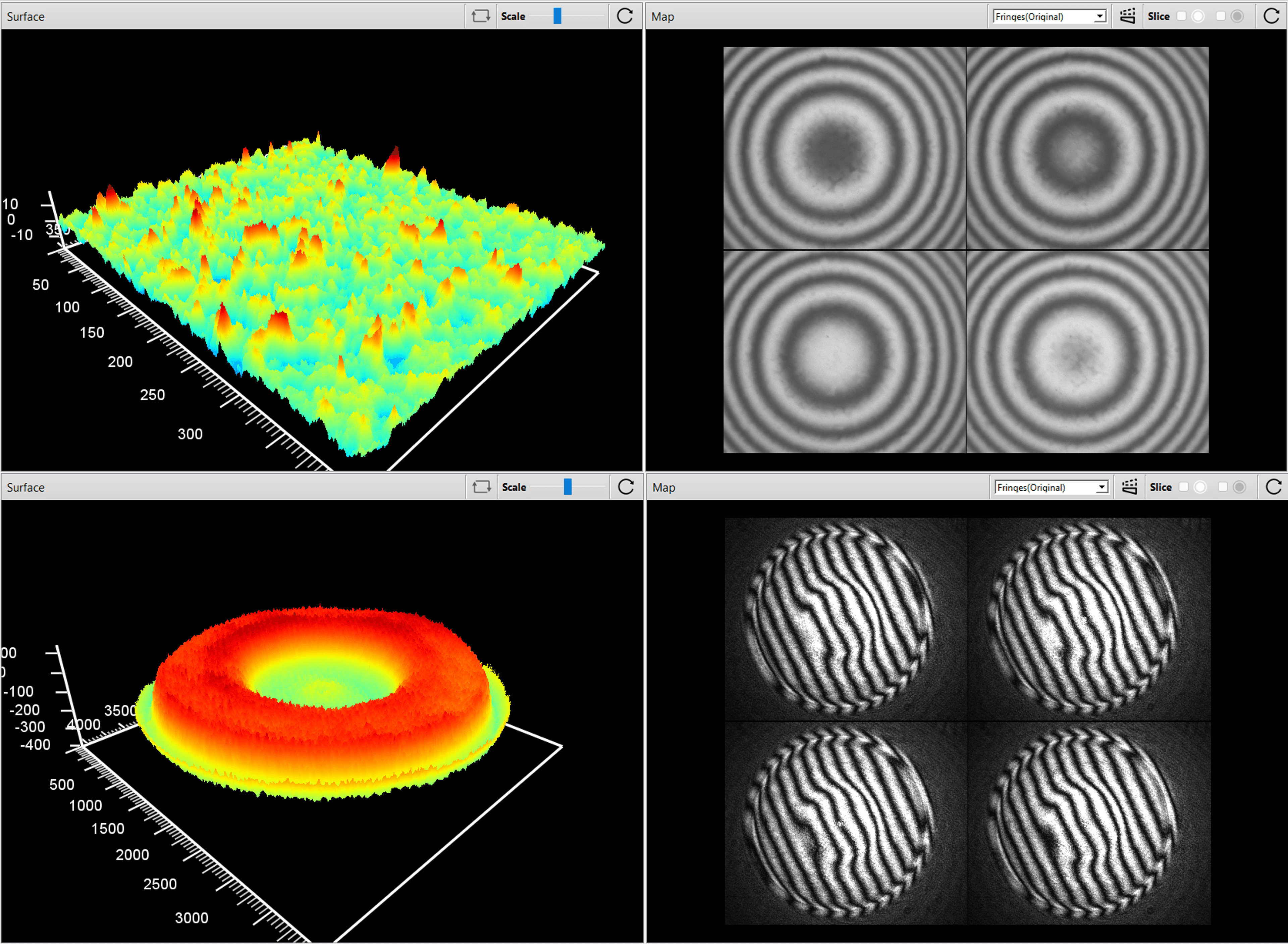

Surface Form & Roughness Measurement
Precise in-situ evaluation of surface form and roughness, reducing measurement time and eliminating repositioning errors
DualSight™

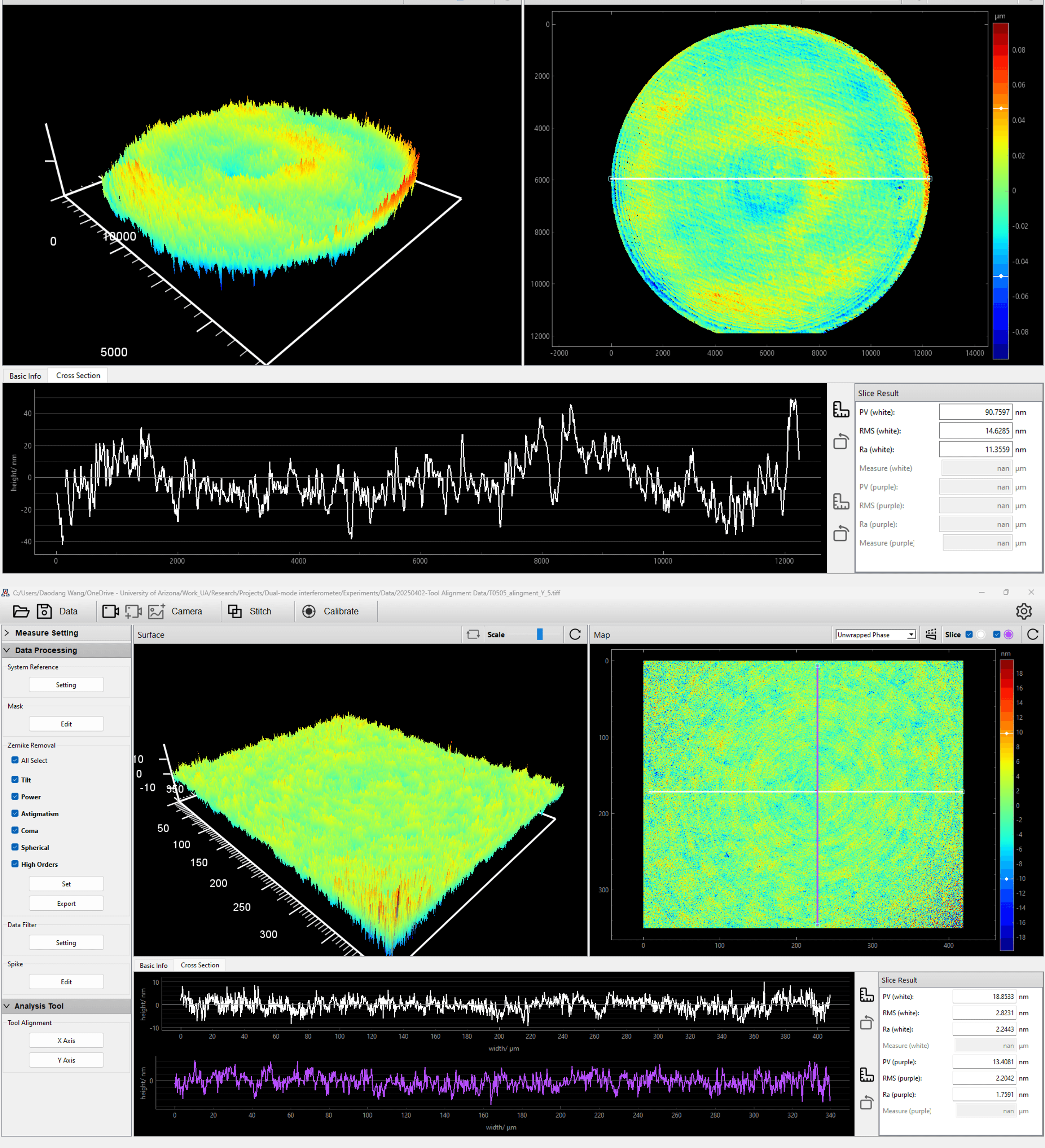

SPDT Tool Alignment
Accurate retrieval of X/Y deviations from the tool-setting artifact for precise on-machine tool alignment, improving setup efficiency and machining throughput.
DualSight™

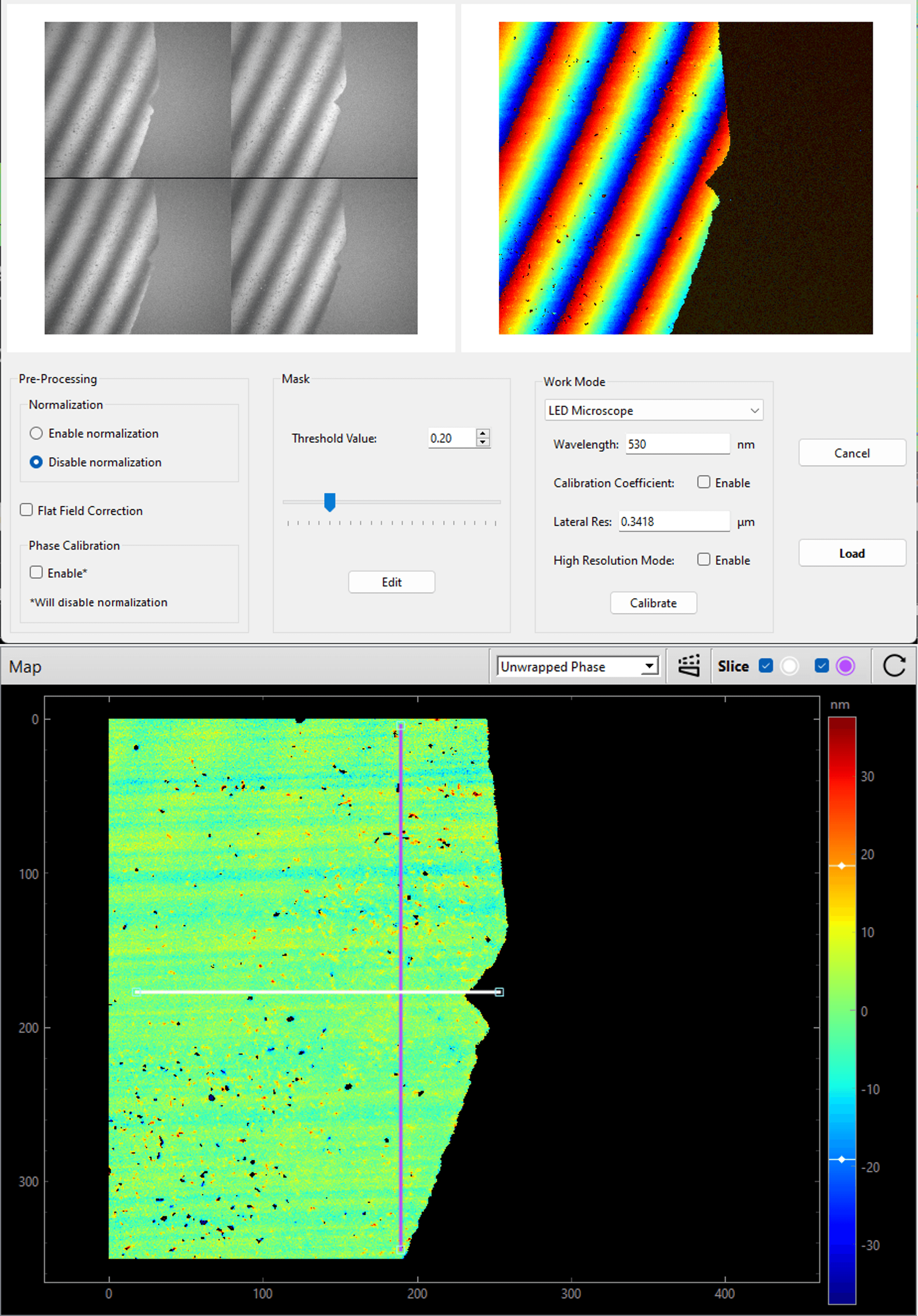

Tool Characterization
On-machine analysis of diamond tool geometry, surface roughness, and waviness, supporting tool wear monitoring in production.
